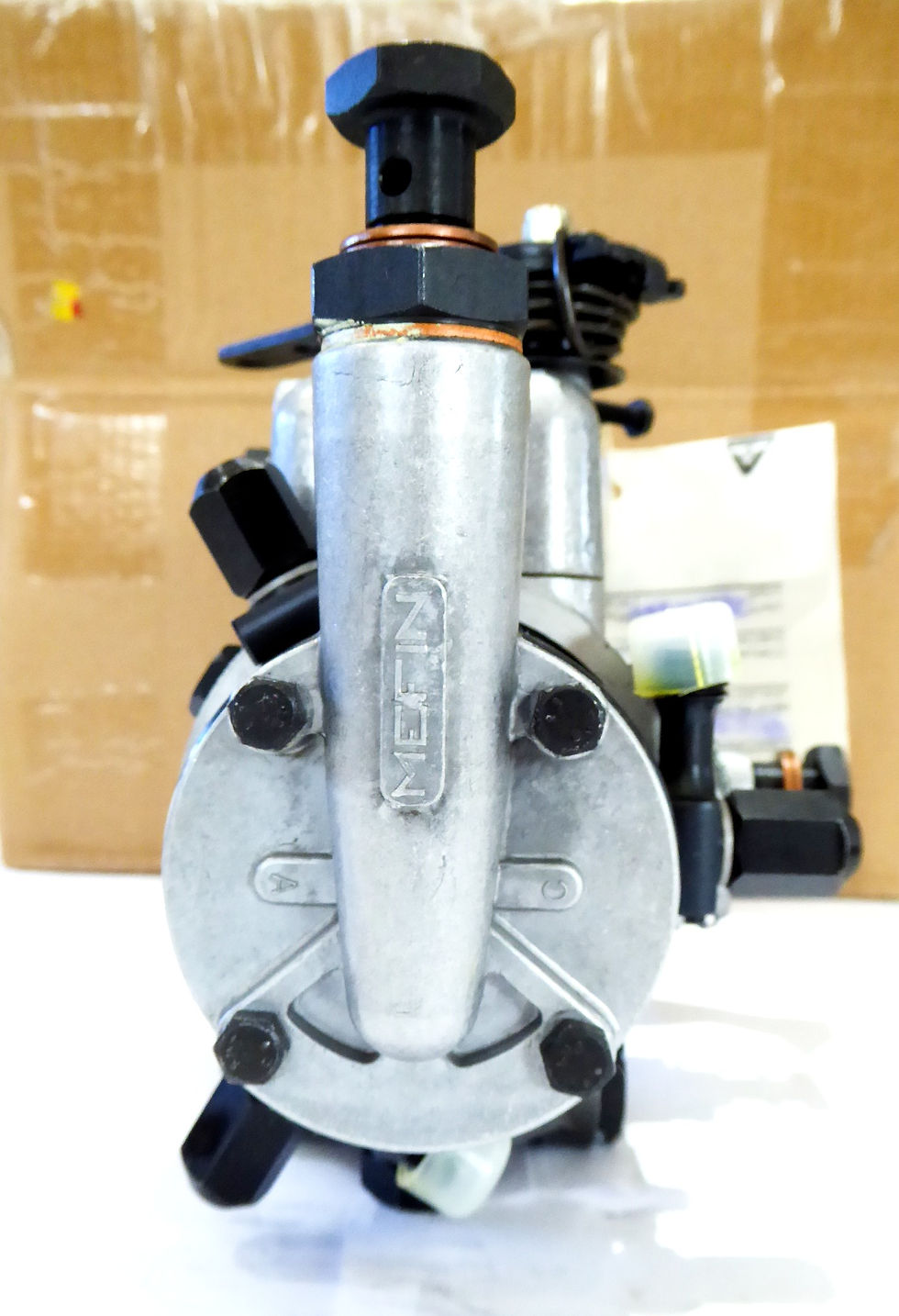

CAV Injection Pump (3 Cyl) Ford (Eng 175) 10 3000 & Indust Series 3233F380

OEM NUMBERS
 -3233F380, 3833F380, D0NN9A543J, D6NN9A543JR, 87763985

SUITABLE FOR MAKE/MODELS
Ford New Holland...
 -10 Series....................3610
 -3000 Series..............3000, 3100, 3330, 3400, 3500, 3600, 3900
 -Industrial Series......333, 335, 340
Ford Engine...
 -175cu.in. (BSD329) Diesel

SPECIFICATIONS
 -Lucas/CAV Rotary Style Fuel Injection Pump for 175 cu.in. 3 Cyl Diesel Engine.
 -Fuel Return Line mounts to the Side of the pump.
 -Not compatible with Bio-Fuel / -Max. Peak Injection Pressure... 500 bar
 -Max. Plunger Stroke... 1.5mm / -Max. Power per Engine Cylinder... 20kw
 -Max. Pump Speed... 2500rpm / -Temperature range.....-20°C to +80°C
 -Mechanical Governor... Yes / -No. of Plungers... 2 / -No. of Pumping Outlets... 3
 -Plunger Diameter... 9.5mm / -Pump Rotation... Clockwise
